Disc Sander & Drum Sander

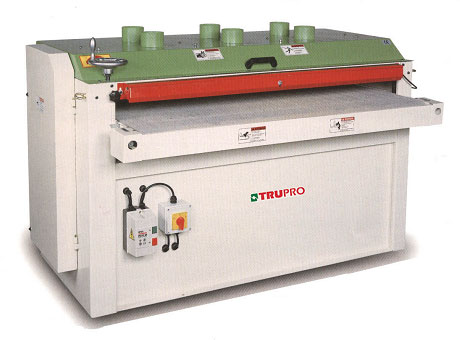

DS-5424
Drum Sander
Standard Features: - Ruggedly constructed throughout assures maximum stability and minimum noise.
- Heavy gauge steel frame and conveyor table for maximum durability without deformation.
- Equipped with high efficiency dust system.
- Thickness limit control switch ensures operation safety.
- Industrial grade conveyor belt provides smooth running and slipping-free performance.
-
Sanding belt is specially wound for maximum security.
Guarantees no folding or breaking during sanding operations. - Two sanding drums position may be micro metrically adjusted.
- 4 heavy duty jack screws provide solid support for conveyor table.
- Minimum sanding length 8" (203mm)
- Thickness capacity on each sanding is 0.10~0.40mm.
- Various sanding belts for choice #60, #80, #100, #150, #180, #240
- Variable feeding speed (optional)
Drum Sander
This versatile drum sander is designed for
sanding a wide variety of parts, such as
metal, non-metal, wood and PC board etc.
Also, excellent for efficient sanding for
wood door frame, window, and stripe.Two sanding drum configuration
The front steel drum provides smooth
surface effect.
The rear drum is rubber to create find
finish surface.
Efficient dust system design
Specially designed five pressure rollers ensure safety and stability of sanding operation
Rigid cast alum. table on 37" and 54" model
Metallic table on 25" model
Model DS-5424 Sanding roller 2 roller Max. sanding width 1370 mm(54") Max. sanding thickness 100mm(4") Table dimension 1370×970 mm(54"×38") Sanding wheel diameter 150 mm(6") Speed of sanding wheel 1720RPM Feeding speed 3.7M/min(12FPM) Sanding motor 10HP 3Phase Feeding motor 1/2HP 3Phase Overall dimension 66"D×46-1/2"W×43"H Packing diameter 74"D×54"W×45"H Net weight 1213 lbs 550KGS Gross weight 1345 lbs 610KGS
