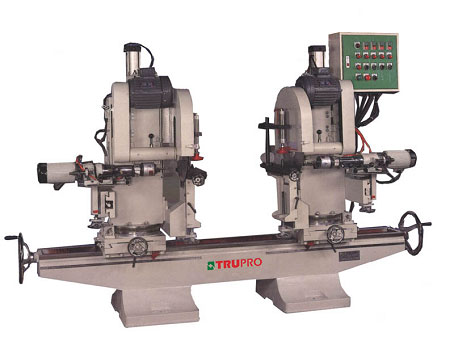

Double End Saw
TEN-150B / TEN-180B / TEN-210B / TEN-240B
45。 Automatic Double End Sawing Machine With Boring Head
FEATURES:
- Suitable for parts machine on square, hexagonal and octagonal table.
- Each sawblade and boring head is controlled separately, permitting for individual and simultaneous operation.
- The machine column can be adjusted 0°~180°.Convenient and fast angle adjustment is achieved through a worm/worm gear unit.
- Fully automatic operation. Simply press the foot switch, and all motions are quickly accomplished.
- All machine motions are actuated by pneumatic power.
- The boring head can be adjusted in vertical and cross directions.
- The table can be adjusted vertically.
- The boring head do not advance until the sawblades return to their home positions, providing added safety for the operator and machine.
- The machine comes equipped with sawblade and fixed center 5 spindle boring heads.
Model TEN-150B / TEN-180B / TEN-210B / TEN-240B Max working length 1500 / 1800 / 2100 / 2400 mm Min woring length 260 mm(straight cut) 300 mm(45° cut) Max workpiece thickness 80 mm Max workpiece width 200 mm Sawblade diameter Ø12" or Ø14" Sawblade speed 4000 rpm Sawblade arbor Ø 1" Saw arbor elevation traverse 180 mm Table area 300×1100 mm Table height from floor(min.) 900 mm Sawblade motor 2 HP×2 pcs Boring head stroke 70 mm Boring speed 2800 rpm Working air pressure 5 kg/cm2 Boring head motor 1 HP×2 pcs Net Weight 1200/1280/1360/1440 kgs Gross Weight 1400/1480/1560/1640 kgs
