Double End Saw

TEN-422R
Double Ended Circular Saw Machine
  • FEATURES:

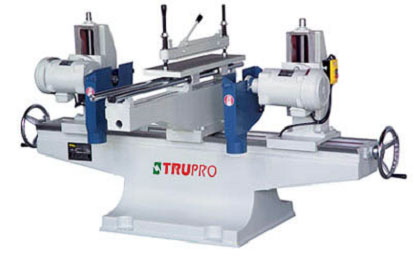

    • The picture shown is a manual model.
    • Sawblades are equipped at both ends for cutting wood to size.
    • Sawblades are an optional accessory.
    • Single rail configuration for models with 3 feet and 4 feet cutting length.
    • Two rails configuration for models with over 4 feet cutting length, ensuring stable support for wood.
    • When requested, a manually-controlled air clamp is available for operational convenience. (optional)
    • Standard models provide for 3 ~ 8 feet length capacity to choose from.
    • A custom model with over 8 feet capacity is available.
  • Model TEN-422R
    Processing Length 250-1220 mm
    Processing width 580 mm
    Sawing Blade 10""~14"(Ø25.4)
    Tilting degree of sawblade and moulding spindle 360°
    Turning speed of circular sawing blade 3300~3650R.P.M, 50~60Hz
    No. of rails 1 set
    Motor of circular sawing blade 2HP x 2
    N.W / G.W 550/670kg
    Machine size (LxWxH) 2230x1360x1100mm
    Shipping size (LxWxH) 2050x970x1400mm
