Double End Saw
TEN-622RT / TEN-822RT
Double Ended Circular Saw Machine
FEATURES:

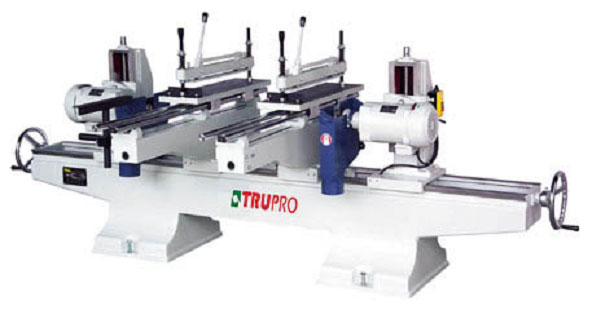

- The picture shown is a manual model.
- Sawblades are equipped at both ends for cutting wood to size.
- Sawblades are an optional accessory.
- Cutting length up to 8 feet.
- Two rails configuration. Round rod slideways ensure extremely smooth feed motion and accurate cutting.
- When requested, a manually-controlled air clamp is available for operational convenience. (optional)
Model TEN-622RT TEN-822RT Processing Length 500-1850 mm 500-2440 mm Processing width 580 mm 580 mm Sawing Blade 10""~14"(Ø25.4) 10""~14"(Ø25.4) Tilting degree of sawblade and moulding spindle 360° 360° Turning speed of circular sawing blade 3300~3650R.P.M, 50~60Hz 3300~3650R.P.M, 50~60Hz No. of rails 1 set 1 set Motor of circular sawing blade 2HP x 2 2HP x 2 N.W / G.W 750/950kg 980/1140kg Machine size (LxWxH) 2950x1360x1100mm 3450x1360x1100mm Shipping size (LxWxH) 2820x790x1400mm 3500x790x1400mm
