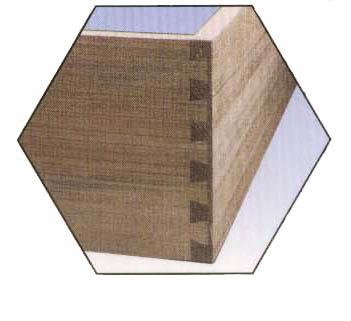

Dovetailer
l The machine has added cooling cycle unit to keep gear oil being lubricated under appropriate temperature, and not lose its lubrication for the sake of high temperature during high speed running resulting in affecting to the service life and function of the gear.
l As the abrasion noise created from belt wire and disadvantage of heat transmission will influence to the workers, and they are uneasy to replace and maintain. It adopts V-belt transmission without noise and for easy replacement, and moreover, it has no shortcoming of overheating.
l Precise gear production and design to make revolving speed of spindle quicker, less noise, and easy to replace and maintain, thus the output is highly increased.
l Dust collector as a standard equipment.
Model
DVT-16AT
Main motor
7.5 HP
Cutter spindle
16 pcs
Spindle rotation (rpm)
7500 rpm
Working range (thickness)
3/8”~1”
Max. width of working piece
16-1/4”
Net weight (kg)
585 kgs
Gross weight (kg)
670 kgs
Machine size (mm)
1430×760×1080 mm
Packing size (mm)
1530×1020×1410 mm
