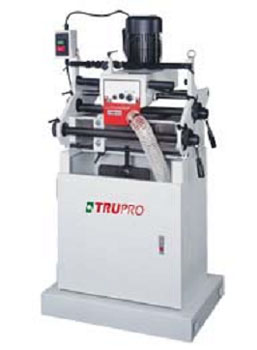

Dovetailer
DVT-45
Dovetailer
- Max. workpiece size 31" x 11".
- Workpieces are clamped manually.
- Enclosed-type stand.
FEATURES: - Ideal for drawer production and furniture parts which require high quality dovetail joints.
- Tenon width can be micro-metrically adjusted in 2 mm.
- Tenon and mortise depth are conveniently adjusted according to the thickness of worpiece.
- Equipped with one four-sided template providing four types of pitches between dovetails.
- Standard pitches 1", 11/2", 2" and 2 1/2". are available as optional.
- The spindle accommodates 12 mm T.C.T. cutter bit.
Model DVT-45 Minimum workpiece size 200 x 60 mm Maximum workpiece size 790 x 280 mm Minimum dovetall height 5 mm Maximum dovetall height 18 mm Minimum front thickness 10 mm Maximum front thickness 40 mm Minimum side thickness 10 mm Maximum side thickness 40 mm Number of spindles 1 Spindle speed (RPM) 18500 RPM Center-to-center dovetail spacing 1", 11/2", 2", 21/2" Table height from floor 985 mm Dust collection ports diameter front 21/2", rear 4" Air pressure requirement - Motor 1 HP Packing dimensions 84 x 66 x 161 cm N.W. / G.W. 130 / 165 kgs
