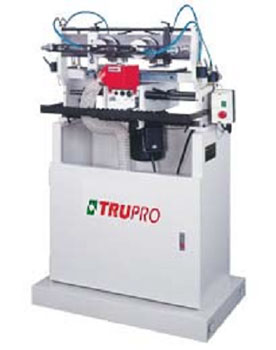

Dovetailer
DVT-65
Dovetailer
- Max. workpiece size 59" x 16 1/2"..
- Workpieces are clamped manually.
- Enclosed-type stand.
- Equipped with an indication bar for indicating cutting position.
FEATURES: - Ideal for drawer production and furniture parts which require high quality dovetail joints.
- Tenon width can be micro-metrically adjusted in 2 mm.
- Tenon and mortise depth are conveniently adjusted according to the thickness of worpiece.
- Equipped with one four-sided template providing four types of pitches between dovetails.
- Standard pitches 1", 11/2", 2" and 2 1/2". are available as optional.
- The spindle accommodates 12 mm T.C.T. cutter bit.
Model DVT-65 Minimum workpiece size 200 x 60 mm Maximum workpiece size 1500 x 420 mm Minimum dovetall height 5 mm Maximum dovetall height 18 mm Minimum front thickness 7 mm Maximum front thickness 60 mm Minimum side thickness 7 mm Maximum side thickness 60 mm Number of spindles 1 Spindle speed (RPM) 18500 RPM Center-to-center dovetail spacing 1", 11/2", 2", 21/2" Table height from floor 1180 mm Dust collection ports diameter front 21/2", rear 4" Air pressure requirement 4 kg/cm2 Motor 1 HP Packing dimensions 105 x 79 x 160 cm N.W. / G.W. 150 / 195 kgs
