Dust Collector

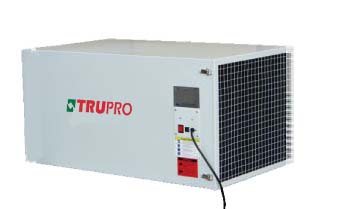

DE-1600AF / DE-2400AF
Woodworking Air Filter
lWith three speed.
l Remote control with 2, 4, 6, or 8-hour programmed.
l Space saving ceiling hanging.
l Superior two stage filtration catch up to 98% of 5 micron particles and up to 85% to 1 micron particles.
l Low noise with high efficiency.
Model
DE-1600AF
DE-2400AF
Motor
1/2 HP / 60hz
4/3 HP / 60hz
Air suction capacity
1542 CFM
2376 CFM
Filter cycle at 20'×20'×8' room
10 Times
10 Times
Timer setting
Continues, 2, 4, 6 and 8H
Continues, 2, 4, 6 and 8H
Outer pre-filter
5 micron
5 micron
Inn-bag filter
1 micron
1 micron
Sound rating
66 dB
70 dB
Overall dimension
1025×630×555 mm
1535×630×555 mm
Packing size
1060×665×595 mm
1570×665×595 mm
N.W / G.W / CUFT
40 kgs / 44 kgs / 14.8'
57kgs / 63 kgs / 22'
