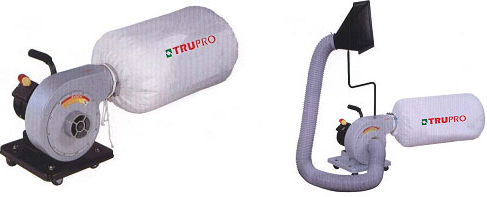

Dust Collector
DE-50P / DE-50H
Portable 1HP Dust Collector

FEATURES:
- Industrial quality motor and specially designed blower impeller for maximum performance.
- Each caster allows for total mobility.
- Dust collector bags always come with an elastic band for 30 micron filter bag for easy installation.
- Metal strap bag clamp will tie up the collection bag completely.
- Extensive line of accessories to control the toughest dust collecting jobs.
- Solid and rigid housing design for the blower system.
- 30 micron filter bag is the supplied as standard accessory.
- 1-micron filter bag and aluminum impeller optional accessory.
- The plastic bag can use for bottom collecting bag in order to replacing clothes bag.
Model DE-50P DE-50H Motor 3/4HP / 60hz 0.56 KW / 50hz 3/4HP / 60hz 0.56 KW / 50hz Air suction w/o bag 650 CFM 870 m3/h 650 CFM 870 m3/h Max. static pressure 5.1 InH2O 137 mmAg 5.1 InH2O 137 mmAg Inlet diameter 4"×1 102 mm×1 4"×1 102 mm×1 Bag capacity 15 gallon 60 liter 15 gallon 60 liter Hose length N/A N/A 4"×2 M 4"×2 M Dust hood size N/A 420×330 mm Overall dimension 1100×400×500 mm 1100×400×1220 mm Packing size 472×402×464 mm 572×402×464 mm N.W / G.W 20 kgs / 22 kgs / 3.2' 21 kgs / 23 kgs / 3.8'
