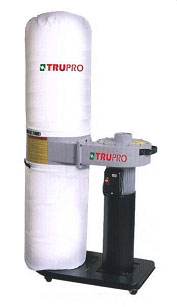

Dust Collector
DE-90D
Portable 1 HP Dust Collector

FEATURES:
- Industrial quality motor and specially designed blower impeller for maximum performance.
- Each caster allows for total mobility.
- Dust collector bags always come with an elastic band for 30 micron filter bag for easy installation.
- Metal strap bag clamp will tie up the collection bag completely.
- Extensive line of accessories to control the toughest dust collecting jobs.
- Solid and rigid housing design for the blower system.
- 30 micron filter bag is the supplied as standard accessory.
- 1-micron filter bag and aluminum impeller optional accessory.
- The plastic bag can use for bottom collecting bag in order to replacing clothes bag.
Model DE-90D Motor 1 HP / 60hz 0.75 KW / 50 Hz Air suction w/o bag 750 CFM 1000 m3/h Max. static pressure 6 InH2O 152 mmAg Inlet diameter 4"×1 102 mm×1 Bag diameter 14-3/4" 374 mm Bag capacity 16 gallon 65 liter Sound rating @3M 60~70 dB Overall dimension 800×420×1550 mm Packing size 666×470×466 mm N.W / G.W 26 kgs / 29 kgs / 5.1'
