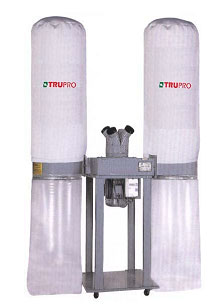

Dust Collector
DE-203HD
5 HP Dust Collector
FEATURES:
- Industrial quality motor and specially designed blower impeller for maximum performance.
- Each caster allows for total mobility.
- Dust collector bags always come with an elastic band for 30 micron filter bag for easy installation.
- Metal strap bag clamp will tie up the collection bag completely.
- Extensive line of accessories to control the toughest dust collecting jobs.
- Solid and rigid housing design for the blower system.
- 30 micron filter bag is the supplied as standard accessory.
- 1-micron filter bag and aluminum impeller optional accessory.
- he plastic bag can use for bottom collecting bag in order to replacing clothes bag.
Model DE-203HD Motor 5 HP / 60hz 3.75 KW / 50 Hz Air suction w/o bag 3500 CFM 5000 m3/h Max. static pressure 12 InH2O 302 mmAg Inlet diameter 9"×4"×4 229×102 mm×4 Bag diameter 23-5/8" 600 mm Bag height 47-1/4" 1200 mm Sound rating @3M 85~95 dB Overall dimension 2200×660×2620 mm Packing size 730×670×1060 mm N.W / G.W 122 kgs / 172 kgs / 18'
