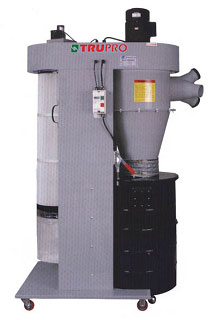

Dust Collector
DE-3100ECK (3HP)
Portable 3HP Dust Cyclone with Auto Canister Cleaning System
FEATURES:
- A cyclone separated the bulky wood waste from the air stream as it enters the dust collection system.
- It is much safer which the cyclone remotes potentially destructive objects before they can enter the impeller.
- A cyclone is more efficient because it consolidates saw dust into an easy to empty container and the airflow won’t restricted by filter clogging.
- Canister filters always resist more hazardous fine dust before it can become airborne or enter your lungs.
- Auto cleaning system can easily help to clean the canister filter with only one tough switch.
- Cartridge filter is made of spun-bond polyester that filters 99.9% of particles from 0.2 to 2 microns in size.
- Quick and smart device for pulling out the steel drum which one person can be done easily.
Model DE-3100ECK Motor 3HP / 60hz 2.25 KW / 50hz Air suction w/o filter 2200 CFM 3700 m3/h Max. static pressure 16.1 InH2O 408 mmAg Inlet diameter 8"×4"×3 203 mm×100 mm×3 Drum capacity 60 gallon Sound rating @3M 78 db at 3M position Filter surface 6.5 M2 Overall dimension 1200×880×2150 mm Packing size 1195×735×2185 mm N.W / G.W 171 kgs / 205 kgs
