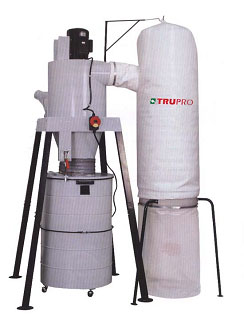

Dust Collector
DE-25SDC
5 HP Two Stage Dust Cyclone (Bag type)
FEATURES:
- A cyclone separated the bulky wood waste from the air stream as it enters the dust collection system.
- It is much safer which the cyclone remotes potentially destructive objects before they can enter the impeller.
- A cyclone is more efficient because it consolidates saw dust into an easy to empty container and the airflow won’t restricted by filter clogging.
- Always attached the 1-micron filter bag with 74% efficiency for upper filtration and clear plastic bag for the bottom bag.
- The quick and smart handle for pulling out collecting drum easily with only one person operating.
Model DE-25SDC Motor 5 HP / 60hz Air suction capacity w/o bag 2500 CFM Max. static pressure 16 InH2O Inlet diameter 10"×4"×4 Bag demension Dia. 23-5/8" Sound rating @3M 75~85 db at 3M position Overall dimension 1800×1300×3000 mm Packing size 900×795×1580 mm N.W / G.W / CUFT 134 kgs / 184 kgs / 40'
