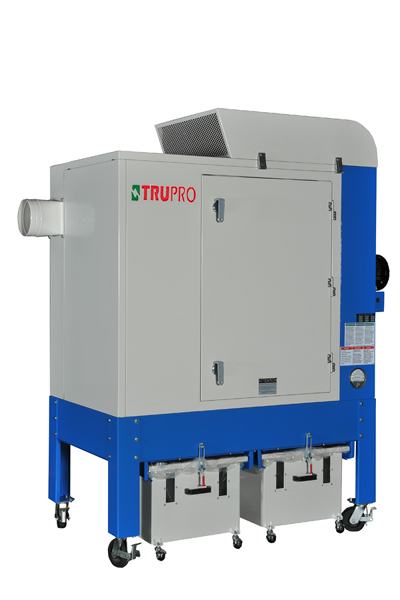

Dust Collector
Features:
l Pneumatic cartridge filters system. Where the cartridge filter have a 1 micron filtration capacity which is over six times the traditional filter bags. Including individual access doors for each filter module, requiring low maintenance.
l Newly designed dump trucks incorporated, where a rail-like system is used for simple slide-out action for convenient emptying of the trucks.
l A vacuum bag suction device maintains a negative pressure in the space between the dump truck and the collection bag to grip the collection bag down, preventing it from being sucked up.
l With the fire emergency sprinkler and anti-explosion vents for absolute safety precautions.
Model
DE-500VC
Power
5 HP
Air suction
8”×1 hole
Air speed(M/sec)
30.5
CFM
2100
Cartridge filter
2 set
Space occupied(CM)
215×119×233
Packing size (CM)
202×99×208
NW/GW (KG)
525/565
