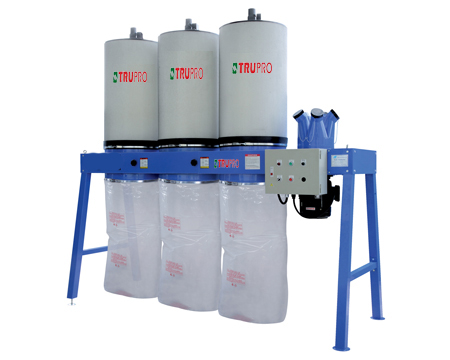

Dust Collector
l Industrial quality motor and specially designed blower impeller for maximum performance.
l Dust collector bags always come with an elastic band for 30 micron filter bag for easy installation.
l Metal strap bag clamp will tie up the collection bag completely.
l Extensive line of accessories to control the toughest dust collecting jobs.
l Solid and rigid housing design for the blower system.
Model
DE-707ECk
Motor
7.5 HP / 60hz
Air suction capacity w/ bag
4500 CFM
Max. static pressure
14 InH2O
Inlet diameter
12”
Bag diameter
85 gallon
Sound rating @3M
90~100 db at 3M position
Overall dimension
2810×1132×1680 mm
Packing size
Machinery: 1505×1160×1120 mm
Canister: 710×710×1330 mm (3 pieces)
N.W / G.W
Machinery :229 kgs / 279 kgs / 69’
Canister: 35 kgs / 38kgs / 23’ (3 pieces)
