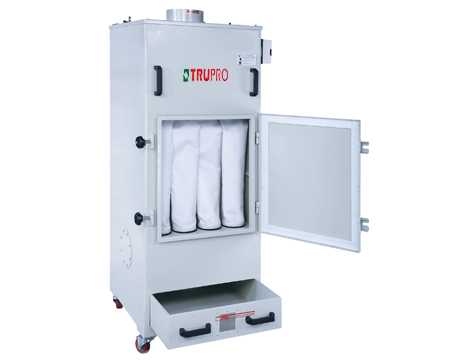

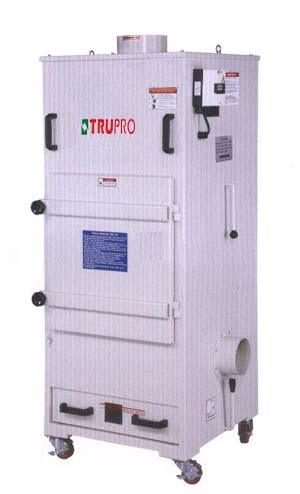

Dust Collector
l It brings height air flow with new design turbo fan at incredible low noise.
l Inside polyester fabric filter can be changed easily when the air capacity is getting lower.
l Convenient design to clean the inside fabric filter by using manual shaker.
l Cabinet type design for better air capacity and reducing noise and also it helps to become the real vacuum cleaner inside your shop, especially great for high-tech industrial use.
l Unique design for easy dust drawer to clean the dust chip and open the front door by two knobs for parts replacement.
Model
DE-503
DE-505
Motor
3 HP
5 HP
Air suction
1300 CFM
1500 CFM
Max. static pressure
14.2 InH2O
19.7 InH2O
Inlet diameter
5”×1
5”×1
Filter bags
Ø150×600mm(L)×16pcs
Ø150×900mm(L)×20pcs
Sound rating @3M
70 db
80 db
Overall dimension
820×760×1720 mm
850×760×2000 mm
Packing size
940×850×1900 mm
970×850×2180 mm
N.W / G.W
166 kgs / 176 kgs / 53.6’
230 kgs / 243 kgs / 63.5’
