Edge Bander
lLarge straight or curved panel custom works.
l Portable or stationary machine applications.
l One man manual edge banding operation.

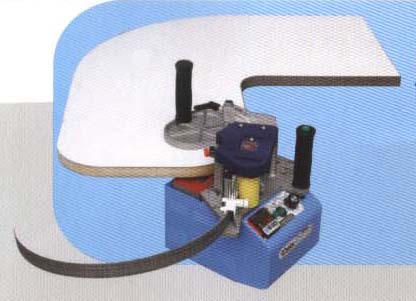

Portability allows larger panel edge banding at workshop or customer site.
Tight inner and outer radii can be glued. Minimum inner radius:25mm.
Stationary set up for easy edge banding on smaller panels or work.
Thickness of the panel can be adjusted by the scale of guiding plate.
Tape thickness range: 16-65 mm. Guiding plate can plate can be tilted within 15 degree for bevel edge banding.

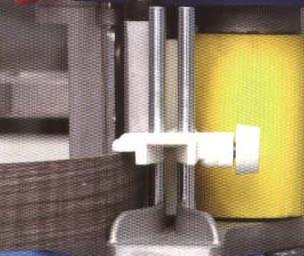

Feeding guide allows quick tape width measurement and easy entrance.

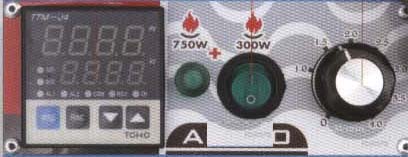

Variable speed and temperature control are easily accessible at the front side of the machine. 300 watt heater icon (extra heating bars) allows faster heat up for the adhesive (2).
Glue pot with 400ml allows larger panel application. With thickness of65 mm tape. The capacity fulfills approximately 25 meters of edge banding.
Glue adjustment knob which controls the amount of glue applied is located at the top of the machine. Its location allows tighter inner radius edge banding.
Model
EB-300C-BR
EB-500C-BR
EB-500C-DR
type
With Wireless Banding function
Tape thickness
0.4-3 mm
0.4-3 mm
0.4-3 mm
Width of tape
10-65 mm
10-65 mm
10-65 mm
Feeding speed
4.0M/min
2-6M/min
4M/min
Total power
855W, 1phase
855W, 1phase
855W, 1phase
Glue working temperature
120℃-200℃
120℃-200℃
120℃-200℃
Glue pot capacity
400 ml
400 ml
400 ml
Machine N.W.
8.7 kg
8.8 kg
9.8 kg
Packing size
350×300×380mm
460×410×530mm
460×410×530mm
20’ container
576
280
280

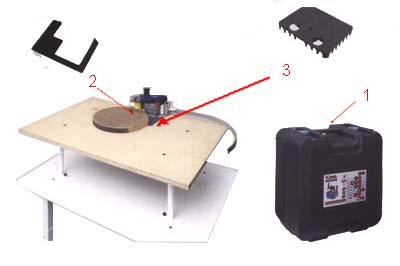

Standard accessories:
(1) Tool box (2)Assembly fixture (3) Fixture cover for stationary worktop

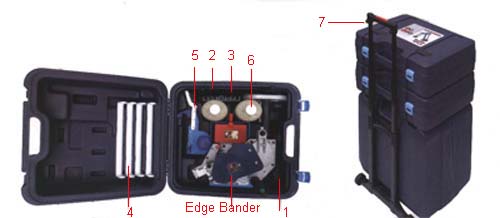

Optional accessories:
(4) Stationary legs (5) Dual end cutter (6) Edge banding glue (7) Trolley
