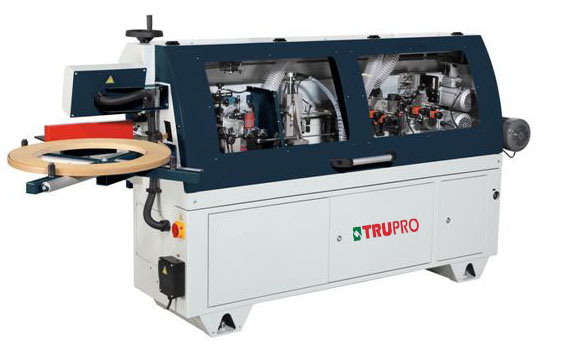

Edge Bander

Model

EB-340

Feeding speed

9M/min

Panel thickness

8-45mm

Edge thickness

0.4-3mm

Min. panel width

100mm

Min. panel length

210mm

Working table height

850mm

Extensible support width

560mm

Extraction connector

5"

Total Motor

5.5KW

Feeding motor

0.75kw

Glue spindle motor

0.18kw

Front / rear trimming motor

0.22kw

Upper trimming motor

0.37kw

Lower trimming motor

0.37kw

Upper buffing motor

0.12kw

Lower buffing motor

0.12kw

Pre-heating

0.4kw

Glue pot

1.315kw

Overall size

2950x1370x660mm

Weight

520kgs/580kgs

Packing size

2290x720x1370mm
