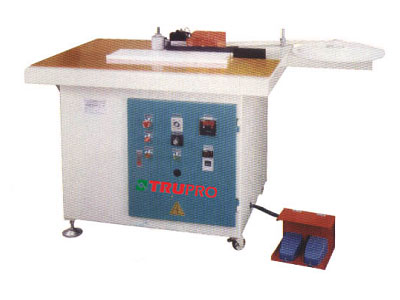

Edge Bander
EB-1 / EB-1E
Manual Edge Banding Machine
FEATURES:
- A safety device of the Thermostat Circuit Kick Off controls the required operating temperature.
- Length of edge materials precisely controlled by Encoder.
- A unique adjustment device for bottom edge materials which does not need top and bottom trimming.
- Available for variable speeds type or (E) Model four speeds controlled by belt upon customer's request, the fastest speeds reached 25 m/min.
- Dual foot pedal switches provide an individual start or a stop during operations to improve the productivity.
Model EB-1 / EB-1E Workpiece length 160 mm~ unlimited Workpiece width 50 mm~ unlimited Workpiece thickness 8~50 mm Edging thickness 0.3~1.2 mm Totol power 1/4HP Variable speed or 1/2HP four speeds N.W / G.W 250 / 320 kg Machine size 1520×880×1070 mm Packing size 1250×950×1100 mm
