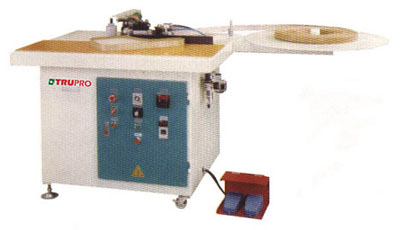

Edge Bander
EB-1B / EB-1EB
Manual Edge Banding Machine
FEATURES:
Besides having all features of EB-1, the following features are added to these models.- Same as EB-1M using a pneumatic device to cut off the edge materials on 0.3~3.0 mm range.
- One Swiss-made 3400W hot air blower and movable pressure roller.
- The most suitable for 3mm profile edge banding.
Model EB-1B / EB-1EB Workpiece length 160 mm ~ unlimited Workpiece width 50 mm ~ unlimited Workpiece thickness 8 ~ 50 mm Edging thickness 0.3 ~ 3.0 mm Totol power 1/4HP Variable speed or 1/2HP four speeds N.W / G.W 270 / 340 kg Machine size 1520×880×1070 mm Packing size 1250×950×1100 mm
