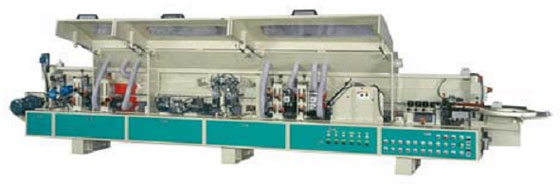

Edge Bander
EB-580/EB-660 /EB-750/EB-780BC
Automatic Edge Banding Machine
Features:
- These automatic edge banding machines accommodate coiIed veneer, striped veneer, 3mm edge strip and wood strip. Each machine is constructed of various working mechanisms, providing maximum flexibiIity of operation. The unit empIoys two Iines of continuous pressure wheels and high tensile link chain conveyor for extremely smooth feeding performance. These quaIity proven automatic edge banding machines integrate many fine features such as maximum dependabiIify high efficiency, high banding quality and minimum trouble.
Basic Working Mechanisms:

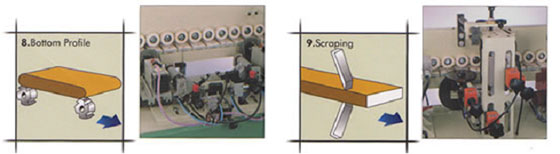

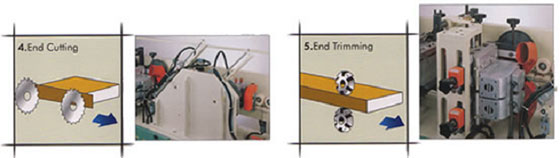

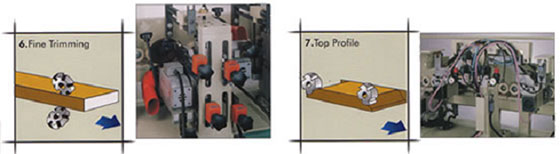

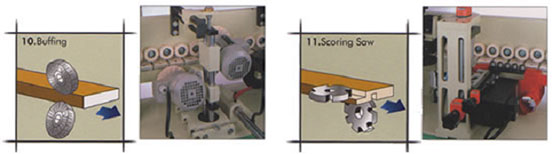

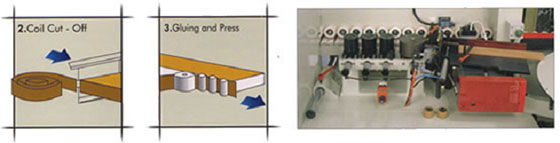

Model ITEM 1 2 3 4 5 6 7 8 9 10 11 12 - 16
(select one unit)EB-350 ∨ ∨ ∨ ∨ ∨ EB-400 ∨ ∨ ∨ ∨ ∨ ∨ EB-450 ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-500 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-580 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-660 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-750 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-940 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨
Workpiece Length 160-up Edging Thickness 0.4-6 / (13) Workpiece Width 65-up Feed Speed 6-25 M/min Workpiece Thickness 10-60 Air Pressure Required 6kg/cm2 Model EB-580 EB-660 EB-750 EB-780BC Feed power 3.8kw 3.8kw 4.0kw 4.0kw Total horsepower 13.5kw(18hp) 14.5kw(19.5hp) 18kw(24hp) 19.5kw(26hp) Net weight 2,170kgs 2,600kgs 3,000kgs 3,200kgs Gross weight 2,670kgs 3,200kgs 3,750kgs 3,950kgs Machine dimensions 6100x1800x1450 6800x1800x1450 7700x1800x1450 8040x1800x1840 Packing dimensions 6000x920x1500 6670x920x1500 7570x920x1500 7910x920x1900 End cutting unit Power 0.67HP x 2 RPM 12,000 Cutter 120 x 20 x 2.6 Flush trimming unit Power 1HP x 2 (2HP x 2) RPM 12,000 Cutter 70 x 16 x 14.3 Fine trimming unit Power 1HP x 2 (0.67HP x 2) RPM 12,000 (18,000) Cutter 70 x 16 x 14.3 (or 73 x 16 x 16 R2 ~ R5) Top profile trimming unit Power 0.5HP x 2 RPM 12,000 (18,000) Cutter 73 x 16 x 16 (R2 ~ R5) Bottom profile trimming unit Power 0.5HP x 2 RPM 12,000 (18,000) Cutter 73 x 16 x 16 (R2 ~ R5) Buffing unit Power 0.5HP RPM 1,720 Buffing 150 x 22 x 24 Scoring saw unit Power 4 HP x1 RPM 7,500 ~ 9,000 Cutter 175 ~ 200 x 25 x 3 (3~8) Corner buffing unit Power 0.5HP RPM 2,780 Buffing 150 x 22 x 40 Edge sander unit Power 2HP RPM 1,720 Sander 100 x 635
