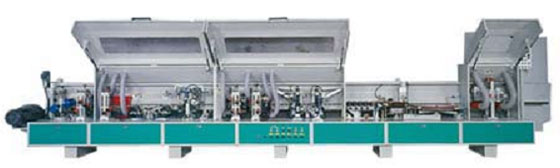

Edge Bander
EB-940
Automatic Edge Banding Machine
Features:
- These automatic edge banding machines accommodate coiIed veneer, striped veneer, 3mm edge strip and wood strip. Each machine is constructed of various working mechanisms, providing maximum flexibiIity of operation. The unit empIoys two Iines of continuous pressure wheels and high tensile link chain conveyor for extremely smooth feeding performance. These quaIity proven automatic edge banding machines integrate many fine features such as maximum dependabiIify high efficiency, high banding quality and minimum trouble.

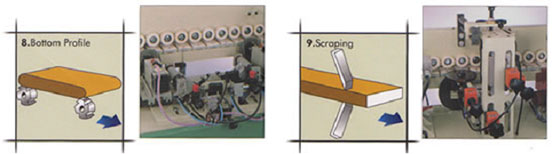

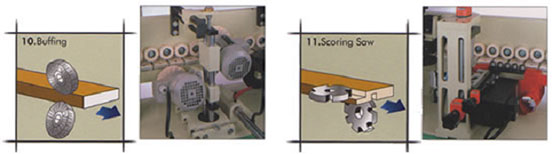

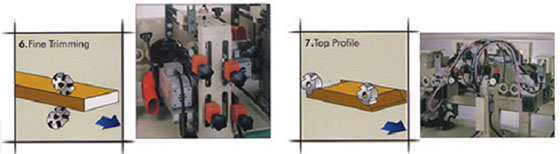

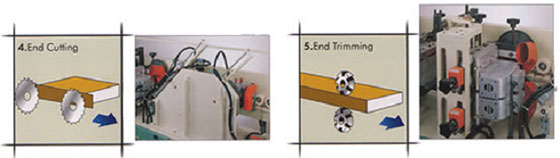

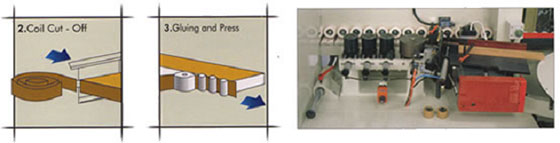

Basic Working Mechanisms:
Model ITEM 1 2 3 4 5 6 7 8 9 10 11 12 - 16
(select one unit)EB-350 ∨ ∨ ∨ ∨ ∨ EB-400 ∨ ∨ ∨ ∨ ∨ ∨ EB-450 ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-500 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-580 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-660 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-750 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ EB-940 ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨ ∨
Workpiece Length 160-up Edging Thickness 0.4-6 / (13) Workpiece Width 65-up Feed Speed 6-25 M/min Workpiece Thickness 10-60 Air Pressure Required 6kg/cm2 Model EB-940 Feed power 5.6kw Total horsepower 24kw(32hp) Net weight 3,500kgs Gross weight 4,250kgs Machine dimensions 9400x1800x1850 Packing dimensions 9300x920x2000 End cutting unit Power 0.67HP x 2 RPM 12,000 Cutter 120 x 20 x 2.6 Flush trimming unit Power 1HP x 2 (2HP x 2) RPM 12,000 Cutter 70 x 16 x 14.3 Fine trimming unit Power 1HP x 2 (0.67HP x 2) RPM 12,000 (18,000) Cutter 70 x 16 x 14.3 (or 73 x 16 x 16 R2 ~ R5) Top profile trimming unit Power 0.5HP x 2 RPM 12,000 (18,000) Cutter 73 x 16 x 16 (R2 ~ R5) Bottom profile trimming unit Power 0.5HP x 2 RPM 12,000 (18,000) Cutter 73 x 16 x 16 (R2 ~ R5) Buffing unit Power 0.5HP RPM 1,720 Buffing 150 x 22 x 24 Scoring saw unit Power 4 HP x1 RPM 7,500 ~ 9,000 Cutter 175 ~ 200 x 25 x 3 (3~8) Corner buffing unit Power 0.5HP RPM 2,780 Buffing 150 x 22 x 40 Edge sander unit Power 2HP RPM 1,720 Sander 100 x 635
