Edge Sander & Stroke belt Sander

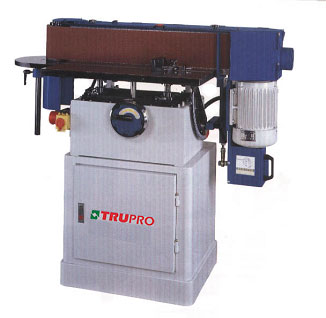

EDS-689
Oscillation Edge Belt Sander with Spindle
FEATURES:
- The sander can sand workpieces in either the horizontal or vertical position or any angle in between 0 to 90 degree.
- Belt plate is made from precision ground steel.
- Main sanding paper runs in precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism.
- The worm and gear mechanisms run in oil.
- 3 spindles from 1-1/2" to 3" in diameter all have threaded end for quick changes.
- The front cast iron table can be moved up and down, beside also forward and backward to the sanding plate.
- Special rubber idler roller and aluminum drive roller to ensure positive grip.
Model EDS-689 Motor 2HP, 1720 RPM Belt size 6" x 89" Belt speed 3150 FPM Edge table size 26 - 3/4" x 12" Auxiliary table size 11 - 3/8" x 8 - 7/8" Platen tilting 0~90 degree Table adjustment Up:3-1/2" , forward: 4 - 3/4" Dust chute 4" x 2 Oscillation distance 10mm Sanding drums 1-1/2", 2", 3" diameter × 4-1/2" (L) Overall dimension 51-1/8" x 27 - 1/2" x 47 - 3/4" Packing size 1200 x 760 x 1110mm N.W / G.W 180kgs / 210kgs
