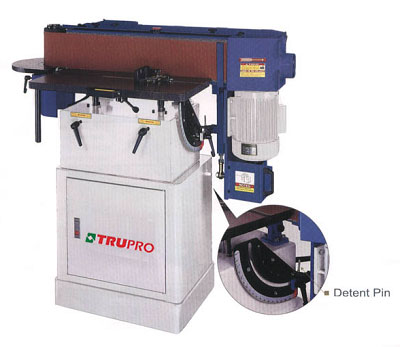

Edge Sander & Stroke belt Sander
EDS-689M
Oscillation Edge Belt Sander
FEATURES:
- The sander can sand workpieces in either the horizontal or vertical position or any angle in between 0 to 90 degree.
- 3 spindles from 1-1/2" to 3" in diameter all have threaded end for quick changes.
- The front cast iron table can be moved up and down, beside also forward and backward to the sanding plate.
- The front cast iron table can be raised with flexible spring adjustment by hand push.
Model EDS-689M Motor 2HP, 1720 RPM Abrasive belt size 6" x 89" Belt speed 3150 FPM Edge table size 26-3/4" x 12" Auxiliary table size 11-3/8" x 8-7/8" Platen tilting 0~90 degree Dust chute 4" x 2 Oscillation distance 10mm Sanding drums 1-1/2", 2", 3" diameter x 4-1/2" (L) Overall dimension 51-1/8" x 27-1/2" x 47-3/4" Packing size 1250 x 730 x 1070mm N.W / G.W 161kgs / 188kgs
