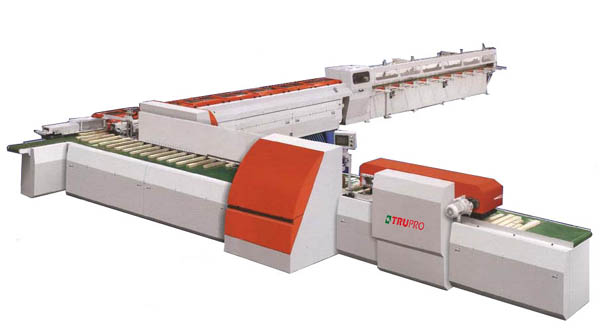

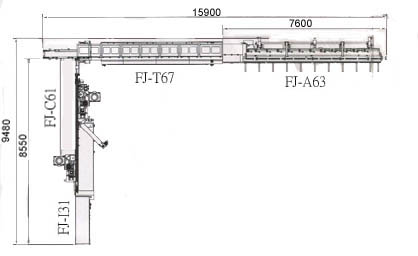

Finger Jointer System
- The machine is designed for horizontal finger shaping and jointing operations. Unlike the conventional vertical shaping, the machine will make the finger jointed products more beautiful outlook. It’s especially ideal for producing solid wood parquet with high production rate up to 90 pcs per minute when the production is equipped with an automatic wood arranging conveyor table.
FJ-C61 Wood side change device

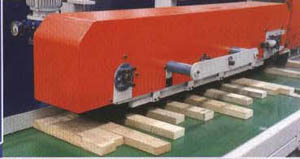

Ultra uniform wood pressure device
FJ-I31 Manual feed table(standard)
Powerful suction table
Optional: Automatic wood arranging conveyor table(FJ-I32)
Model
FJ-C61
Range of workpiece length
150~900 mm
Range of workpiece width
15~160 mm
Range of workpiece height
16~55 mm
Feeding speed
Max. 90 pieces/min
Trimming saw speed
2800 rpm(50Hz)
3400 rpm(60Hz)
Finger cutter speed
5000 rpm
Scoring saw speed
2800 rpm(50Hz)
3400 rpm(60Hz)
Feed of chain motor
7.5 HP
Trim saw motor (and scoring saw)
10 HP×2
Shaper cutter motor
20 HP×2
Scoring saw motor
1 HP×3
Cutter spindle diameter
Ø70 mm
Dia. Of cutter (in/out)
Ø210 mm
Dust hood outlet diameter
6”×2, 4”×2
Machine dimensions (L×H×W)
6260×1510×2550 mm
Model
FJ-T67 (6M)
Range of workpiece length
15~100 mm
Range of workpiece width
25~200 mm
Feeding speed
140 m/min
Feed drive motor
2 HP×2
For conveyor motor
2 HP
Brush wheel drive motor
1/2 HP
Wheel drive motor
1/2 HP
Overall length
6710 mm
Overall width
1140 mm
Overall height
1110 mm
Packing dimensions
6620×1200×1220 mm
Model
FJ-A63 (6M)
Available length of product
6200 mm
Available thickness of product
15~60 mm
Available width of product
15~160 mm
Feeding speed
80 m/min
Capacity length product
5 pcs
Feed drive motor
2 HP
Max. assembly pressure
0~150 kg/cm2
Hydraulic power unite
5 HP
Cut-off saw
5 HP
Dust hood outlet diameter
4”
Machine dimensions(L×H×W)
7400×1400×1380 mm
Noise value
84 db
Packing dimensions(L×H×W)
7500×1500×1060 mm
Model
FJ-I31
Conveyor table width
610 mm
Feed drive motor
1HP
Machine length
2500 mm
Machine width
700 mm
Machine height
910 mm
Model
FJ-I32
Conveyor table width
800 mm
Feed drive motor
1HP
Brush wheel drive motor
1 HP
Machine length
2510 mm
Machine width
1500 mm
Machine height
1600 mm
