Finger Jointer System

FJ-620AUTO

Automatic High Efficient Continuous Finger Joint Equipment

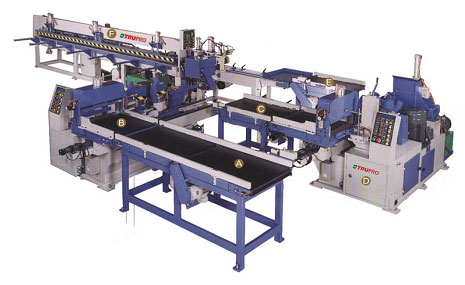

A---Conveyor B---FJR-620 C---Conveyor D---FJL-620 E---Conveyor F---FJ-500A

Feeding	Cutting	Washing teeth	Gluing
Finger feeding joint	Pasting	Sawing off	Finished product

FEATURES:

The FJR-620 performs end trimming, scoring, shaping functions on right end of sticks.
The rail is furnished with linear motion guide ensuring smooth traverse and high accurate cutting.
Construction of feeding table
Scoring blade may be easily adjusted for proper depth of cut.
The clean cut off performance is assured through this trimming and scoring blade mechanism.
Use hydraulic and pneumatic systems.

FEATURES:

The FJL-620 perform trimming, shaping and automatic functions on left end of sticks.
The rail is furnished with linear motion guide ensuring smooth traverse and high accurate cutting.
Use hydraulic and pneumatic systems.
With a patent which No.98579 for automatic gluing function.
Construction of feeding table.

FEATURES:

Automatic consecutive feeding.
Jointing of sectional sticks which have been glued.
Cutting the jointed sticks to desired length.
Final assembly is securely pressed by powerful hydraulic system.
Then the jointed sticks be fed out regularly.
Infeed guider for finger joint.
Jointed sticks are completed with hydraulic and pneumatic systems.
Pressure is adjustable depending on the size of workpiece.

Model	FJL-620
Motor of finger cutter	20HP
Motor of trimming saw	5HP
Motor of upper & lower scoring saw	2HP
Motor of hydraulic pump	3HP
Speed reducer motor	1/2HP
Table size	620mm
Trimming saw blade size	10"×100T×4.0×50/1PCS
Working capacity	800×620×150mm
N.W/G.W	1800×2100kgs
Packing dimension(LxWxH)	3200×1500×1640mm
