Door Making Machine & Forming Equipment
l The standard equipment for the oil pressure tank foot rest is 3 pieces, but the greatest number of choice for the equipment is 5 pieces.

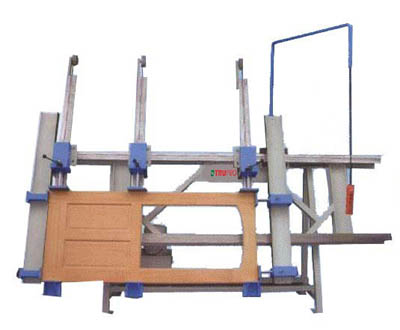

l The hydraulic frame presses is designed fogged construction and especially, hi-power compined with accurate operation, the pressing action can be hydraulically locked at any position, so that, even at max. power, the pressing frame are no less accurate, the upper frame side unit & the vertical cylinder support are equipped with rules, convenient for operating, the vertical cylinder movement & positioning is employed the springs balances facilitates, due to various pressing case, the vertical & side cylinders can be moved randomly.
Model
CCZ-3017
Platen size
3000×1700 mm
Vertical cylinder stroke
150 mm
Side cylinder stroke
100 mm
Hydraulic power
2 HP
Machine size
3800×1100×2700 mm
Machine weight(N.W./G.W.)
870kg / 1000kg
