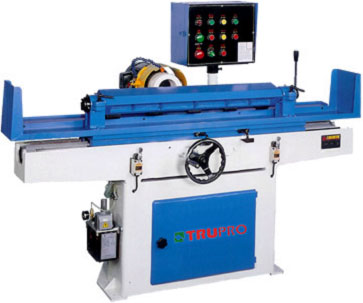

Knife Grinder
TG-900
Automatic Knife Grinder
Grinding examples: - Plastic crusher knife
- Plastic bag cutting knife
- Chipper knife
- Planer knife
FEATURES: - High power of grinding wheel to achieve fast grinding and minimize grinding time, too.
- Economical and efficient to obtain flat, straight and nonannealed knives.
- Parallelism between knives holder (or magnetic chuck - optional) and bed rail ± 0.025mm.
- Splash guard and coolant tank are stainless steel.
Model TG-900 Grinding capacity (L × W × H) 36" × 5" × 5/8" (915 × 127 × 16mm) Grinding wheel size(dia.× H ×bore) Ø6" × 3 1/2" (Ø 150 ×Ø 90mm) Speed of grinding wheel 3400 R.P.M Motor Grinding wheel 3HP Automatic table 1/2HP Cooling system 1/8HP One shot lubrication Yes Electric system magnetic switch Machine Size (L × W × H) 75" × 44" × 63" (1900 × 1120 × 1600mm) Packing Size (L × W × H) 76" × 49" × 69" (1930 × 1150 × 1750mm) Net Weight 440kgs (968 lbs) Gross Weight 680kgs (1496 lbs)
