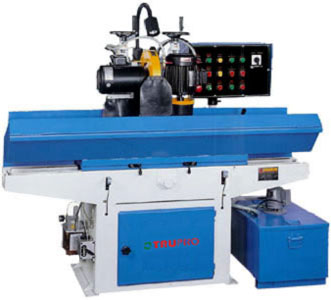

Knife Grinder
TG-650
Automatic Knife Grinder
Grinding examples: - Planer and jointer knife
- Shoe's bottom peeling knife
- Filament cutting knife
- Super surfacer knife
- Power tool blade
- Herbs cutting knife
FEATURES: - Can obtain good, sharp knives by using a fine grinding wheel after a rough one.
- Force cooling system gets knives neither heated, transfigured nor annealed.
- Grinding wheel up-down movement with ball screw sets which obtain accurate and best result.
- Parallelism between knives holder (or magnetic chuck- optional) and bed rail ±0.01mm, high accuracy and good durability.
- Splash guard and coolant tank are stainless steel.
Model TG-650 Grinding capacity (L × W × H) 26" × 3" × 3/8" (660 × 76 × 9.5mm) Grinding wheel size(dia.× H ×bore) Coarse wheel Ø10" × 3/4" × Ø1" Fine wheel Ø4" × 2" × Ø2" Speed of grinding wheel 1700 R.P.M Motor Grinding wheel Coarse wheel 2 HP Fine wheel 1/2 HP Automatic table 1/2HP Cooling system 1/8HP One shot lubrication Yes Electric system magnetic switch Machine Size (L × W × H) 69" × 27" × 59" (1750 × 680 × 1500mm) Packing Size (L × W × H) 75" × 35" × 69" (1910 × 880 × 1740mm) Net Weight 620kgs (1364 lbs) Gross Weight 820kgs (1804 lbs)
