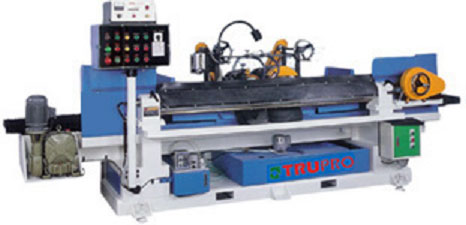

Knife Grinder
TG-1600
Automatic Knife Grinder
Grinding examples: - Paper cutting knife
- Single side cutting knife
- Veneer cutting knife
- Planer knife
FEATURES: - Can obtain good, sharp knives by using a fine grinding wheel after a rough one.
- Force cooling system gets knives neither heated, transfigured nor annealed.
- Grinding wheel back-front movement with ball screw sets which obtain accurate and best result.
- With magnetic chuck parallelism ±0.03mm and high accuracy.
- Equipped with variable speed motor for fine grinding wheel to grind high speed steel knives and carbide knives.
- Splash guard and coolant tank are stainless steel.
Model TG-1600 Grinding capacity (L × W × H) 63" × 6" × 3/4" (1600 × 153 × 19mm) Grinding wheel size(dia.× H ×bore) Coarse wheel Ø10" × 5-1/4" × Ø1-1/4" Fine wheel Ø6" × 2-5/8" × Ø2" Speed of grinding wheel 1700 R.P.M Motor Grinding wheel Coarse wheel 7.5 HP Fine wheel 1 HP Automatic table 1/2HP Knife holder turning motor 40W Cooling system 1/8HP One shot lubrication Yes Electric system magnetic switch Machine Size (L × W × H) 150" × 50" × 70" (3300 × 1270 × 1770mm) Packing Size (L × W × H) 157" × 57" × 79" (4000 × 1450 × 2000mm) Net Weight 2300kgs (5060 lbs) Gross Weight 2700kgs (5940 lbs)
