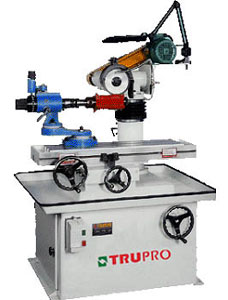

Knife Grinder
TG-300
Cutting Grinder
FEATURES:
- Special design for grinding moulder cutters of 4-side.
- Heavy and stable construction makes it durable & accurate.
- Parallelism of work table 0.005mm and with good durability.
- Can grind carbide router bits by router bit chuck.
- Both wheel guard and coolant tank are stainless steel.
Model TG-300 Grinding capacity Cutters (dia. × w) Ø 16" × 12" Router bits(shank) Ø 1/4"~3/4" Work table(max) 14" (355 mm) Grinding wheel size(dia. ×bore) diamond wheel Ø 175" × Ø 16 mm Speed of grinding wheel 5000 R.P.M Motor Grinding wheel 2HP Cooling system 1/8HP Electric system magnetic switch Machine Size (L × W × H) 45" × 46" × 63" (1140 × 1170 × 1600mm) Packing Size (L × W × H) 52" × 50" × 67" (1330 × 1270 × 1710mm) Net Weight 550kgs (1210 lbs) Gross Weight 750kgs (1650 lbs)
