Knife Grinder

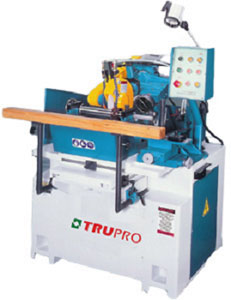

TG-312
Profile Grinder (1:1)

  • FEATURES:

    • Work table back-front, left-right are moved with Ø9, Ø6mm linear bearing cross roller rail sets, accuracy+-0.005mm, grinding length is up to 300mm.
    • Water splash guard and coolant tank are stainless steel.
  • Model TG-312
    Grinding capacity Cutters(dia. × w) Ø12" × 12"
    Work table(max) Left-right (320 mm)
    Back-front (125 mm)
    Grinding wheel size(dia. ×bore) Ø 255 ×(6×3)×Ø 31.75 mm Ø 225 x Ø 6 x Ø 175 mm
    Speed of grinding wheel 1720~2940 R.P.M
    Motor Grinding wheel 2HP
    Cooling system 1/8HP
    Electric system magnetic switch
    Machine Size (L × W × H) 41" × 48" × 54" (1050 × 1220 × 1380mm)
    Packing Size (L × W × H) 52" × 52" × 62" (1330 × 1330 × 1570mm)
    Net Weight 940kgs
    Gross Weight 1100kgs
