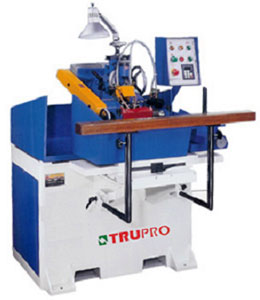

Knife Grinder
TG-330
Profile Grinder (1:1)
FEATURES:
- Work table back-front, left-right are moved with Ø9, Ø6mm linear bearing cross roller rail sets, accuracy ±0.005mm, grinding length is up to 250mm.
- Grinding wheel head is micro-adjustable and accurate, 3HP variable speed motor is powerful for grinding.
- Knife edge angle is adjusted by dovetail arc groove, grinding center is never changed no matter what the angle is. Easy and efficient to operate.
- Water splash guard and coolant tank are stainless steel.
Model TG-330 Grinding capacity Cutters(dia. × w) Ø10" × 10"
H.S.S cutters head (dia. ×w) Ø 10" × 10"Work table(max) Left-right (265 mm) Back-front (110 mm) Grinding wheel size(dia. ×bore) Ø 200" × 60 mm Speed of grinding wheel 1500~4200 R.P.M (variable speed) Motor Grinding wheel 3HP Cooling system 1/8HP Electric system magnetic switch Machine Size (L × W × H) 41" × 44" × 59" (1040 × 1120 × 1500mm) Packing Size (L × W × H) 48" × 48" × 63" (1220 × 1220 × 1600mm) Net Weight 800kgs Gross Weight 950kgs
