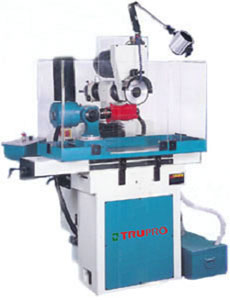

Knife Grinder
TG-400
Automatic Tool Grinder
FEATURES:
- This is a machine fully automatic controlled.
- It is superior machine, which is easy to operate and can save manpower. Grinding just needs setting once.
- It could be used to grind carbide cutter, router bits and finger jointer cutter very precisely.
Model TG-400 Grinding capacity Cutters Ø350 × 250 mm Finger jointing cutter Ø160 / Ø210 / Ø250 mm Bore 50 mm Length of set 310 mm Router bits shank Ø3~19 mm Work table(max) 400mm Grinding wheel size(dia. ×bore) Ø175 × 20mm Speed of grinding wheel 3000 R.P.M Motor Grinding wheel 2HP Automatic table 1Hp Hydraulic Cooling system 1/8HP Dividing head servo 400 W Grinding wheel up-down 1/3 HP Machine Size (L × W × H) (1400 × 1120 × 1730mm) Packing Size (L × W × H) (1540 × 1280 × 1900mm) Net Weight 650kgs Gross Weight 780kgs
