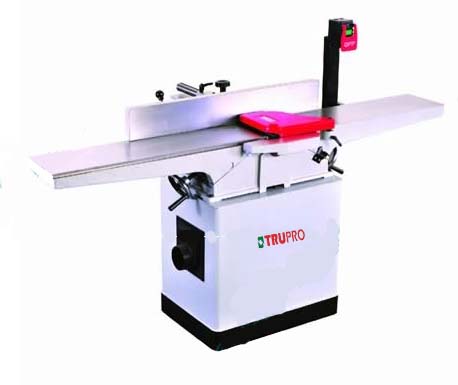

Jointer
l Large cast iron table with a precision machine finish will ensure accuracy.
l Central-mounted, large cast iron fence is equipped with 45° and 90° positive stops.
lHeavy four knife cutterhead rapidly cuts to produce superior finish.
l Rabieting ledge is built into the table for versatility.
l Infeed and outfeed tables are easily adjusted by a hand wheel with a convenient locking knob.
l Accurate and easy to read dept-of-cut scale with automatic stop at 1/8” setting facilitates fast set-up for repetitive finish jointing.
Model
817-0103F
Motor
2 HP
Cutting capacity
Width: 8"(203mm)
Depth:1/2"(Max. 12.7mm)
Rabbeting capacity:1/2"(Max. 12.7mm)
Cutterhead speed
4800rpm
Number of knives
4
Cutterhead Dia.
75 mm
Table(L×W)
Length:1800 mm
Length of infeed table: 880 mm
Length of outfeed table: 880 mm
Width: 330mm
Height from floor: 795 mm
fence
Size: 889×124mm
Tilt in and out: 45°
Positive stops: 90° 45° in and out
Packing information
Packing dimension: 1850×450×300mm(Jointer)
655×455×615mm(Stand)
Gross weight: 208kg
