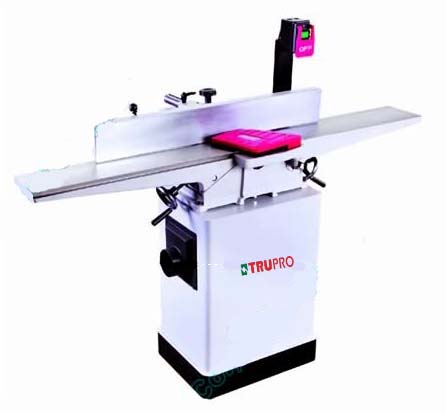

Jointer
lLarge cast iron table with a precision machine finish will ensure accuracy.
l Infeed and outfeed tables raised and lowered by handwheel located in the front for easy access and precision table adjustment.
lHeavy duty one piece steel stand with mounting tabs for extra stability.
l Dust chute with 4” dust port for efficient dust / chip collection.
l Central mounted two-way tilting fence with positive stops at 45° and 90°.
lSpring loaded front blade guard and fixed real cutterhead guard for max. protection.
Model
817-0106F
Motor
1 HP
Cutting capacity
Width: 6"(153mm)
Depth:1/2"(Max. 12.7mm)
Rabbeting capacity:1/2"(Max. 12.7mm)
Cutterhead speed
4400rpm
Number of knives
3
Cutterhead Dia.
61 mm
Table(L×W)
Length:1535 mm
Length of infeed table: 860 mm
Length of outfeed table: 755 mm
Width: 255mm
Height from floor: 850 mm
fence
Size: 889×124mm
Tilt in and out: 45°
Positive stops: 90° 45° in and out
Packing information
Packing dimension: 1600×360×250mm(Jointer)
495×395×695mm(Stand)
Gross weight: 135kg
