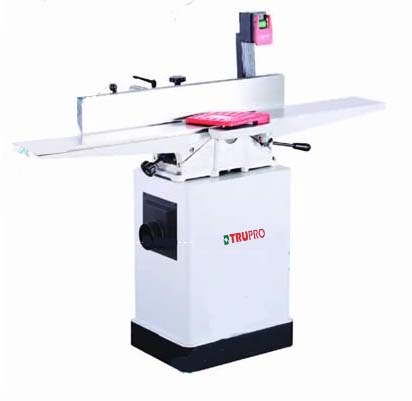

Jointer
l Large cast iron table with a precision machine finish will ensure accuracy.
l Infeed and outfeed tables raised and lowered by handwheel located in the front for easy access and precision table adjustment.
l Heavy duty one piece steel stand with mounting tabs for extra stability.
l Dust chute with 4” dust port for efficient dust / chip collection.
lCentral mounted two-way tilting fence with positive stops at 45° and 90°.
l Infeed table positioning lever is easy to use for fast, accurate height adjustment.
Model
817-0106FL
Motor
1 HP
Cutting capacity
Width: 6"(153mm)
Depth:1/2"(Max. 12.7mm)
Rabbeting capacity:1/2"(Max. 12.7mm)
Cutterhead speed
4400rpm
Number of knives
3
Cutterhead Dia.
61 mm
Table(L×W)
Length:1535 mm
Length of infeed table: 860 mm
Length of outfeed table: 755 mm
Width: 255mm
Height from floor: 850 mm
fence
Size: 889×124mm
Tilt in and out: 45°
Positive stops: 90° 45° in and out
Packing information
Packing dimension: 1600×360×250mm(Jointer)
495×395×695mm(Stand)
Gross weight: 135kg
