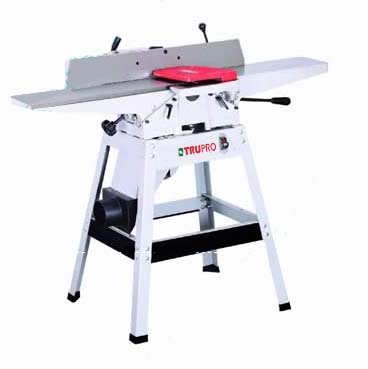

Jointer
lHeavy gauge steel stand with wide footprint design for sturdy support features built-in dust chute to direct dust and chips away from operator.
l Center-mounted fence for maximum work support. Fence tilts for beveling and chamfering operations. Functions as a rear cutterhead guard on narrow cuts.
l Easy to read dept-of-cut scale with automatic stop at 1/8” setting facilitates fast set-up for repetitive finish jointing.
l Dust chute with 4” dust port for efficient dust/ chip collection.
l Spring loaded front blade guard and fixed real cutterhead guard for max. protection.
Model
817-0108
Motor
1 HP
Cutting capacity
Width: 6"(153mm)
Depth:1/2"(Max. 12.7mm)
Rabbeting capacity:1/2"(Max. 12.7mm)
Cutterhead speed
4400rpm
Number of knives
3
Cutterhead Dia.
61 mm
Table(L×W)
Length:1210 mm
Length of infeed table: 700 mm
Length of outfeed table: 590 mm
Width: 255mm
Height from floor: 820 mm
fence
Size: 740×98mm
Tilt in and out: 45°
Positive stops: 90° 45° in and out
Packing information
Packing dimension: 1245×515×275mm
Gross weight: 104kg
