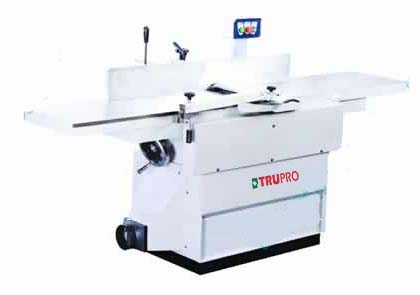

Jointer
lLarge cast iron table with a precision machine finish will ensure accuracy.
l Infeed and outfeed tables are easily adjusted by a hand wheel for accurate table movement.
lCentral-mounted, large cast iron fence is equipped with 45° and 90° positive stops.
lRack and pinion fence adjustment for precise fence movement.
l Conveniently positioned, magnetic switch is placed high above the table, in full operator view, for quick access.
Model
817-0100
Motor
4 HP
Cutting capacity
Width: 16"(400mm)
Depth:1/2"(Max. 12.7mm)
Rabbeting capacity: 1/2"(Max. 12.7mm)
Cutterhead speed
4600rpm
Number of knives
4
Cutterhead Dia.
98 mm
Table(L×W)
Length:2250 mm
Length of infeed table: 1090 mm
Length of outfeed table: 1090 mm
Width: 420mm
Height from floor: 820 mm
fence
Size: 1195×150mm
Tilt in and out: 45°
Positive stops: 90° 45° in and out
Packing information
Packing dimension: 2300×820×1025mm
Gross weight: 570kg
