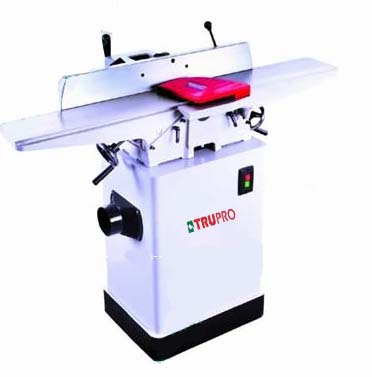

Jointer
lInfeed tables raised and lowered by handwheel for precision table adjustment.
l Central-mounted fence for max. stock support.
l Infeed table features cast-iron support ledge for rabbeting operations.
l Dust chute with 4” dust port for efficient dust/ chip collection.
l Spring loaded front blade guard and fixed real cutterhead guard for max. protection.
l Close-up ladder-shaped stand with rubber feet for easy assembly and great stability.
Model
817-0109D
Motor
1 HP
Cutting capacity
Width: 6"(153mm)
Depth:1/2"(Max. 12.7mm)
Rabbeting capacity:1/2"(Max. 12.7mm)
Cutterhead speed
4400rpm
Number of knives
3
Cutterhead Dia.
61 mm
Table(L×W)
Length:1210 mm
Length of infeed table: 700 mm
Length of outfeed table: 590 mm
Width: 255mm
Height from floor: 820 mm
fence
Size: 740×98mm
Tilt in and out: 45°
Positive stops: 90° 45° in and out
Packing information
Packing dimension: 1270×370×245mm(Jointer)
495×395×700mm(Stand)
Gross weight: 116kg
