Jointer
817-0110

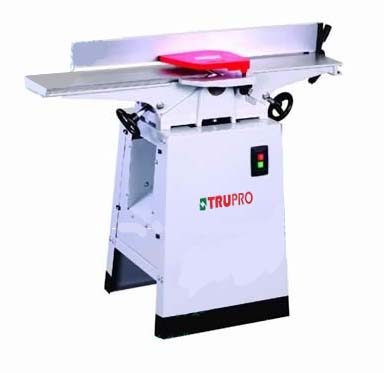

6” Economical Jointer
lInfeed and outfeed tables are made of precision ground cast iron.
l Side fence tilting locker for easy access and quick action.
l Close-up ladder-shaped stand with rubber feet for easy assembly and great stability.
l Central mounted two-way tilting fence with positive stops at 45° and 90°.
Model
817-0110
Motor
1 HP
Cutting capacity
Width: 6"(153mm)
Depth:1/2"(Max. 12.7mm)
Rabbeting capacity:1/2"(Max. 12.7mm)
Cutterhead speed
4400rpm
Number of knives
3
Cutterhead Dia.
61 mm
Table(L×W)
Length:1015 mm
Length of infeed table: 595 mm
Length of outfeed table: 535 mm
Width: 245mm
Height from floor: 810 mm
fence
Size: 875×98mm
Tilt in and out: 45°
Positive stops: 90° 45° in and out
Packing information
Packing dimension: 1140×495×275mm
Gross weight: 84kg
