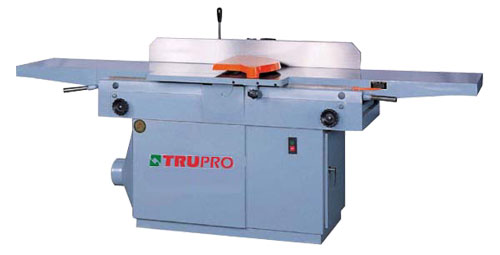

Jointer
WJ-168L
Hand Jointer

Model J-168L Cutting capacity Max. width 16" (406.4mm) Max. depth of cut 3/4" (19mm) Table size Width 16" (406.4mm) Length 96" (2438mm) Height from floor 311/2" (800mm) Fence Sixe(LxH) 47 x 51/2", 1194x140mm Tilt degree 45° (F & R) Positive stops 45°, 90°, 135° Cutterhead Speed 5000R.P.M Number of knives 3 Diameter 15/16" (100mm) Cutting circule 43/32" (140mm) Rebbeting capacity 3/4" (19mm) Overall dimension (L x W x H) 97 x 40 x 37"(2464 x 1016 x 940mm) New weight 450 kg, 990 lbs Gross weight: 550 kg, 210 lbs Helical cutterhead available on request
