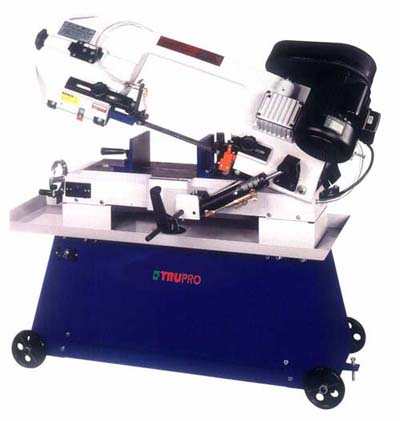

Bandsaw-Horizontal
BS-812
Metal Cutting Bandsaw
- A longer blade and a larger blade wheels provide a larger radius to reduce stress on the blade.
- Secure clamping of a lead screw with a patented quick vise design to quickly shuttle the vise jaw into position.
- The stand has a large water tray to return coolant and prevent spill over, and a handle to easily move the machine.
A slanted hydraulic cylinder with protecting cover mounted directly to the band saw table.
Quick action vises provides clamping material easily and securely.
CSA approved base with wheels and position set screw.
3 points clamp the material very sturdy, securely and convenience.
Model
BS-812
Capacity
90° C: 8” (200 mm) R: 8” x 9.5” (200 x 240 mm)
R: 4-3 / 4” x 12” (120 x 305 mm)
45° C: 4” (105 mm) R: 4” x 5.5” (100 x 140 mm)
Motor
1 HP 4P 1720RPM
Blade size
3 / 4” x 0.032” x 93” (20 x 0.85 x 2362 mm)
Blade speed
78 / 118 / 160 / 232 FPM (24 / 36 / 48 / 70MPM)
Packing measurement
51” x 18” x 42” (1295 x 457 x 1067 mm)
N.W / G.W
308lbs / 352lbs (140 kgs / 160 kgs)
Container loads
42 sets / 20’
