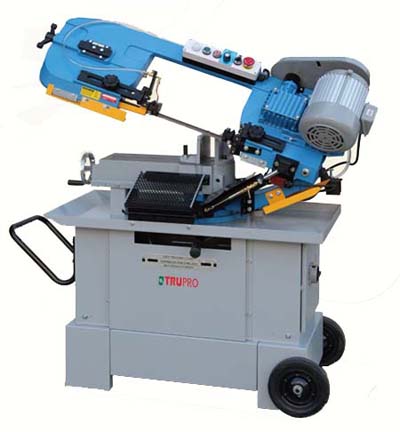

Bandsaw-Horizontal
BS-180SV
Metal Cutting Bandsaw
l Newly miter cutting swivel device
l Motor inverter controls blade speeds
l Angle cutting lock lever in front of machine
l Installed with wheels for easy movement
Model
BS-180SV
Capacity
90° C:7”(178 mm) R:7” ×10.2”(178×260 mm)
45° C: 4” (100 mm) R: 4”×4.33”(100×110 mm)
Motor
1 HP 4P 1720RPM
Blade size
3/4”×0.032”×93” (19×0.9×2360 mm)
Blade speed
25~85 MPM (Variable speed)
Miter scale
0°~45°
Packing measurement
50”×22.5”×42.5” (1270×571×1080 mm)
N.W / G.W
396lbs/462lbs(180 kgs / 210 kgs)
