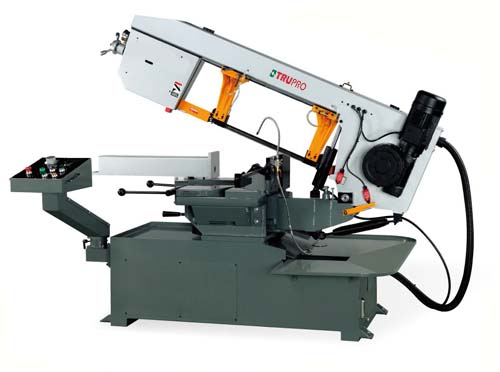

Bandsaw-Horizontal
BS-20SA
Metal Cutting Bandsaw
- Swiveling saw head manually.
- Miter cutting L(45°)/ R(60°)
- Blade tension gauge.
- Manual locking vise.
- Chip collecting drawer.
- Wheel driven chip brush.
- Variable speed by motor inverter.
- Digital blade speed display.
Model
BS-20SA
Capacity
90° C:13”(330 mm) R:13” ×18.1”(330×460 mm)
(R/L)45° C:12” (305 mm) R:13”×10.6”(330×270 mm)
(R)60° C: 8.5” (215 mm) R: 12.4”×7.7”(315×195 mm)
Motor
3 HP 4P 1720RPM
Coolant motor
1/6 HP
Blade size
1.33”×0.043”×162.6” (34×1.1×4130 mm)
Blade speed
21~93 MPM (Variable speed)
Coolant tank
78liters
Packing measurement
88.6”×35.5”×61.4” (2250×900×1560 mm)
N.W / G.W
850 kgs / 980 kgs)
