Bandsaw-Horizontal

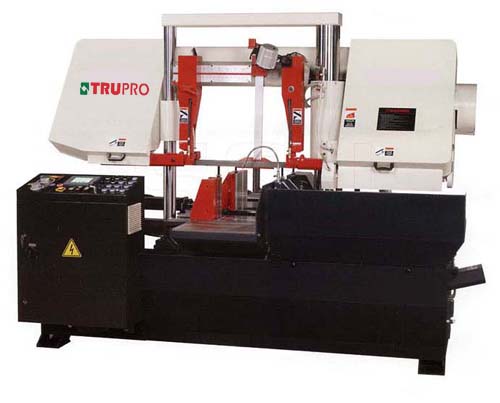

BS-460HA
Double Column Automatic Bandsaw

  •

    proimg/WA-4033HA-12.jpg

    Control panel human-machine interface

    This control panel with a touch screen that has multiple functions for setting and programming, and can auto shows abnormal cause and remedv.





    proimg/WA-460HA-11.jpg

    Full stroke cylinders for clamping material

    The machine is equipped with an automatic hydraulic shuttle and fixed vises which clamp the material safely and quickly.

  • Model

    BS-460HA

    Capacity

    90°  C: 460 mm R: 480×460 mm

    Motor

    7.5 HP×4P

    Blade size

    41×1.3×5450 mm

    Blade speed

    50Hz-16.7-70.8 MPM

    60Hz-20-85 MPM

    Hydraulic motor

    2HP

    Coolant motor

    1/4HP

    Hydraulic tank

    88 L

    Coolant tank

    117 L

    Table height

    810mm

    Feeding stroke

    510mm

    Min. residual work length

    85mm

    Bundle cutting (W×H)

    210×130mm~360×230mm

    Min. cut off length

    Over 8mm

    Min. No material detecting

    25mm

    Packing measurement

    2870×2300×2200 mm

    N.W / G.W

    2800 kgs / 3280 kgs
