Bandsaw-Horizontal
Hollow shaft worm reducer
A worm gear reducer which enhances torque out put, high working load, and can perform high efficient cutting rate.
Full stroke cylinders for clamping material easily
The machine is equipped with an automatic hydraulic shuttle and fixed vises which clamp the material safely and quickly.
Automatic chip conveyerAutomatic cleaning chip tray device that is driven by the hydraulic motor which is durable and last longer.
Model

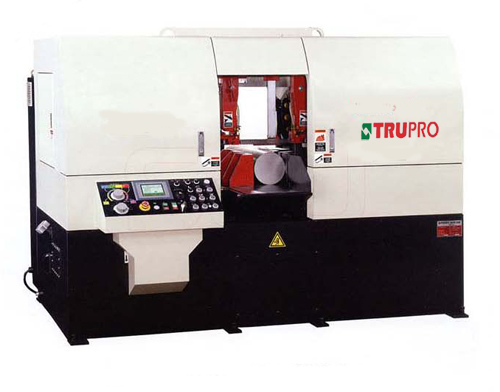

BS-4033HAF
Capacity
90° C: 330 mm R: 400×330 mm
Motor
5 HP×4P
Blade size
34×1.1×4570 mm
Blade speed
50Hz-17-75 MPM
60Hz-20-90 MPM
Hydraulic motor
2HP
Coolant motor
1/8HP
Hydraulic tank
90 L
Coolant tank
100 L
Table height
800mm
Feeding stroke
500mm
Min. residual work length
70mm
Bundle cutting (W×H)
160×50mm~280×150mm
Min. cut off length
Over 8mm
Min. No material detecting
25mm
Packing measurement
2800×2270×2100 mm
N.W / G.W
2500 kgs / 2900 kgs
