Bandsaw-Horizontal

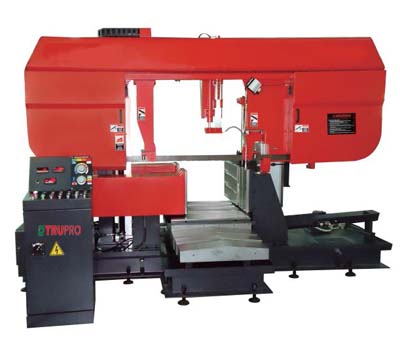

BS-800SAT / BS-1100SAT
Double Column Semi-Auto Bandsaw
l Linear guides are use on saw-bow and table movement.
l Table movement for feeding material.
l Set table moving and cutting position by encoder.
l Blade tilt detect sensor and readout (Option).
l Chip auto conveyor.
l Double clamping vise.
l Vise clamping pressure regulator. (option).
l Hydraulic vertical press device (option)
Model
BS-800SAT
BS-1100SAT
Capacity
90° C: 800 mm
R: 800×800 mm
90° C: 1100 mm
R: 1100×1100 mm
Motor
10HP
15HP
Blade size
54×1.6×8300 mm
67×1.6×9800 mm
Blade speed
20-85 MPM
20-85 MPM
Hydraulic motor
3HP
5HP
Coolant motor
1/4HP
1/4HP
Hydraulic tank
90 L
90 L
Coolant tank
160 L
160 L
Table height
620mm
620mm
Packing measurement
4300×2100×2400 mm
4500×2250×3075 mm
N.W / G.W
7080 kgs / 7300 kgs
9280 kgs / 10080 kgs
