Bandsaw-Horizontal

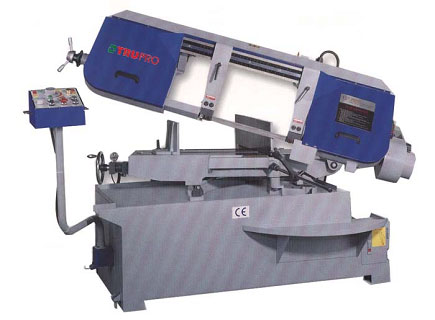

BS-330SSAV
Metal Cutting Bandsaw
  • Type Semi-auto. Swivel head. Variable speed,Hydraulic vise, Swiveling control box
    Motor 3 HP 6P 1430 RPM
    Blade speed 20-80 MPM (66-264FPM)
    Blade size 34×1.1×4100 mm
    Capacity 90° 330 mm 340x480 mm 225x530 mm
    45° 275 mm 300x275 mm
    30° 330 mm 300x415 mm
    Packing measurement 2300×940×1450 mm
    N.W / G.W 750 kgs / 860 kgs
    Container loads 6 sets/20' 13sets/40'
