Bandsaw-Horizontal

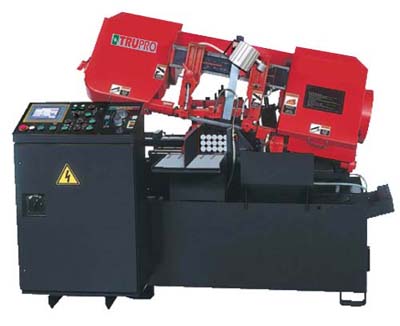

Band Saw With Compact Human-Machine Interface
CONTROL PANEL WITH MONOCHROME TOUCH SCREEN
This control system sets the length and quantity of cuts, it also displays blade speed and error indicator coded. The screen combined with standard controls giving user full operation of the machine.
Features:
l Monochrome touch screen.
l Precise length encoder.
l Hydraulic blade tension device.
lMotor inverter controls blade speed.
MODEL
BSX-250AE
Cutting capacity
250 mm 250×300 mm
Blade size
27×0.9×3505 mm
Blade speed
50 HZ 16~66 m/min
60 HZ 20~80 m/min
Main motor
3 HP×4P
Hydraulic motor
1 HP×4P
Coolant motor
1/6 HP×4P
Hydraulic tank
30 Liters
Coolant tank
40 Liters
Allowable loading capacity
1500 kg
Roller stand loading capacity
1000kg
Bundle cutting
150~250×100~130 mm
Cut off length
Over 10mm
Number of set cuts
1~9999
Feeding stroke
400mm
Min. no material detecting
32mm
Table height
750 mm
Floor space
2210×2290×1890 mm
Machine weight
1430 kg / 1570 kg
